Specifications |
ENGINE
Engine type : Single cylinder, 4 stroke, DOHC, SI Engine, Water cooled, Fuel Injection
Bore : 84 mm
Stroke : 81.5 mm
Swept volume : 452 cc
Compression ratio : 11.5:1
Max power : 29.44 kW (40.02 PS) @ 8000 rpm
Max torque : 40 Nm @ 5500 rpm
Idle RPM : 1300 rpm
Starting : Electric start
Air filter element : Paper element
Lubrication : Semi-dry sump
Cooling : Water cooled
Ignition : ECU controlled
Spark plug:Champion
Spark plug gap : 0.8 mm to 0.9 mm
TRANSMISSION
Clutch : Wet multi plate, slip and assist
Gear box : 6 Speed
CHASSIS
Frame : Steel, twin spar tubular frame
SUSPENSION
Front : Upside down fork, 43 mm, front wheel travel 200 mm

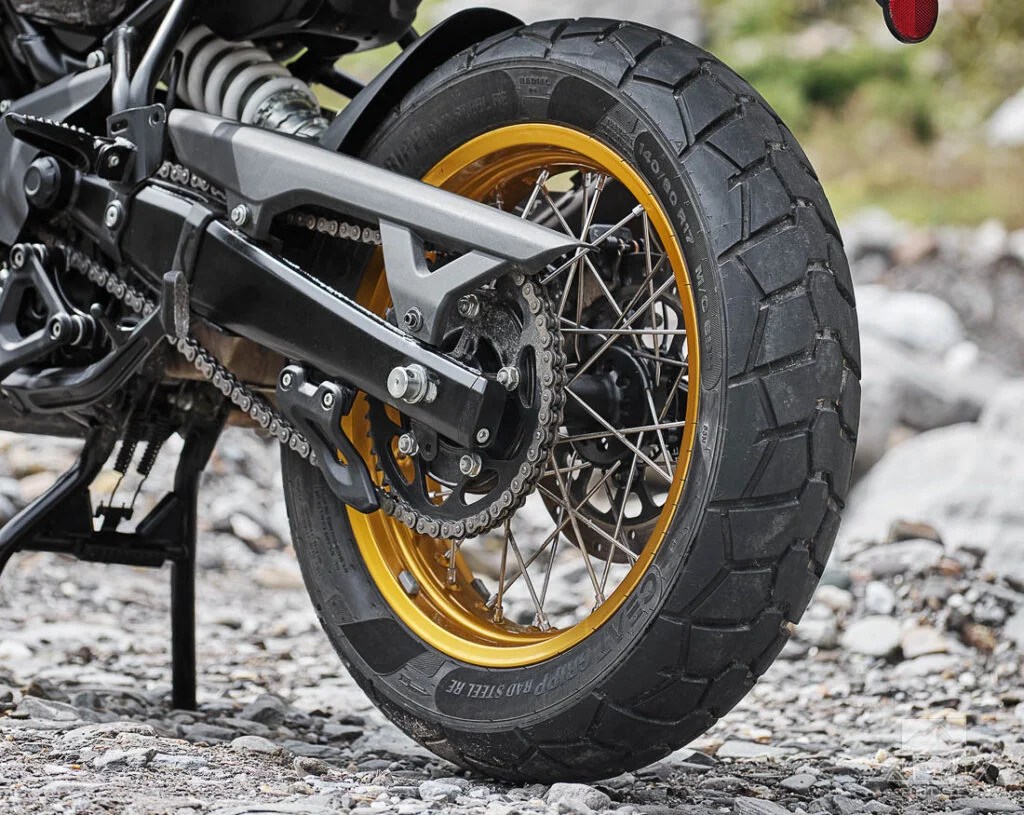

Rear : Linkage type mono-shock, rear wheel travel 200 mm
BRAKES
Front disc: Hydraulic disc brake, 320 mm ventilated disc, double piston caliper
Rear disc : Hydraulic disc brake, 270 mm ventilated disc, single piston caliper
Brake system : Dual channel ABS, Switchable
|
