Specifications |
Model Name/Number : JCB 530-110
Brand : JCB
Maximum Engine Power : 56 kW (76 hp) @ 2200 rpm
Maximum Lift Capacity : 3000 Kg
Maximum Lift Height : 11 m
Overall Height : 2.62 m
Overall Width (Over Tyres) : 2.36 m
Inside Width of Cab : 0.79 m
Front Track Width : 1.99 m
Wheelbase : 2.54 m
Overall Length to Front Tyres : 4.13 m
Overall Length to Front Carriage : 5.43 m
Ground Clearance : 0.39 m
Front Wheel Centre to Carriage : 1.93 m
Rear Wheel Centre to Rear Face : 0.95 m
Operating Weight : 9060 Kg (with Fork)
Outside Turn Radius (Over Tyres) : 4.85 m
Overall Width with Stabilisers Fully Deployed : 2.65 m
Fork Rollback Angle (At Full Height) : 7.5 Degree
Lift Capacity at Full Reach : 1400 Kg
Reach at Maximum Lift Heigh : 0.9 m
Maximum Forward Reach : 7.46 m
Reach with 1 Tonne Load : 7.46 m
Placing Height : 10.5 m
Displacement : 4.8 L
Max Torque : 310 Nm (31.6 kgm) @ 1100 rpm
Operating Speed : 2250 RPM
Tyres Front : 13.00 x 24 -16PR
Tyres Rear : 12.5 x 18 -12PR Industrial traction pattern tyres
Tyres Option : HD Tyres / Extra HD Tyres / Solid Tyres / Agri Tyres
Maximum Road Speed : 30 km/hr
Fuel Tank Capacity : 110 L
Hydraulic Tank Capacity : 120 L
Engine Coolant Capacity : 16.5 L
Engine Oi Capacity : 14.2 L
Transmission Capacity : 18 L
Front Axle Capacity : 21 L
Rear Axle Capacity : 11 L
Hydraulic Pump : 2 Section Gear
Pump Capacity : 103 lpm
Main Relief Valve : (245 bar) 24500000 Pa
Boom Up Hydraulic Cycle Times : 11.3 Seconds
Boom Down Hydraulic Cycle Times : 9.2 Seconds
Extend Hydraulic Cycle Times : 14.7 Seconds
Retract Hydraulic Cycle Times : 19.7 Seconds
Bucket Dump Hydraulic Cycle Times : 3.0 Seconds
Bucket Crowd Hydraulic Cycle Times : 2.4 Seconds

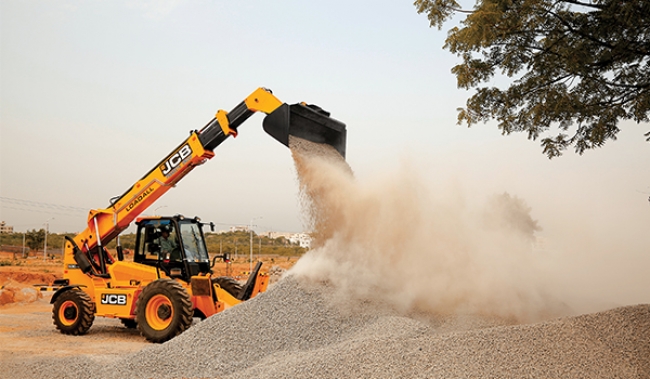

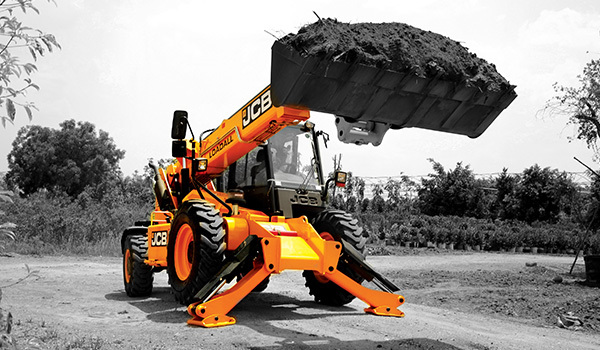

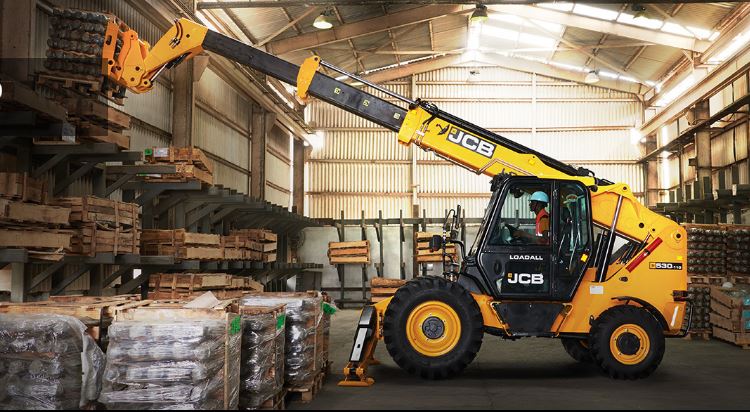

The New JCB 530-110 is a compact 11 metre Telehandler engineered to offer visible, breakthrough productivity that offers discernible results across industries and applications including construction material supply, building construction, roads, agriculture, tunneling and so much more. The New JCB 530-110 Telescopic Handler heaps and stacks with 23 feet maximum reach on 11 metre machines, better than the competition, and is fuel efficient to reduce recurring costs. Its ergonomic, sturdy design enables unmatchable operator safety, stability and comfort while ensuring unprecedented control via the JCB LiveLink. With an unmatched range of attachments, this telehandler provides a one-time
|
