Specifications |
ENGINE
Displacement: 249.6 cc
Max net power: 30.15+bhp
Max net torque: 23N.M/7000 rpm
Compression ratio: 11.5:1
Stroke: 53.6 mm
Bore: 77 mm
BODY AND DIMENSIONS
Fuel tank capacity: 10 L
Starting method: Electric & Kick;
Length: 2300 mm
Width: 830 mm
Height: 1270 mm
Wheelbase: 1500 mm
Ground clearance: 330 mm
Dry weight: 110 kg
TRANSMISSION
No. of gears: 6
Gear pattern: 1-N-2-3-4-5-6
SUSPENSION
Frame type: Twin spar Perimeter

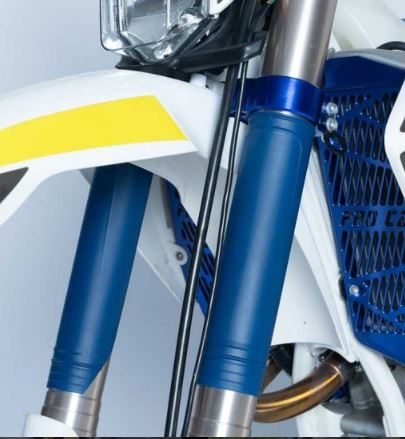

Front suspension: SZC 47mm Inverted with rebound and compression-damping adjustability,251mm travel
Rear suspension: SZC monoshock with spring preload and rebound -damping adjustability,116mm travel;
|
